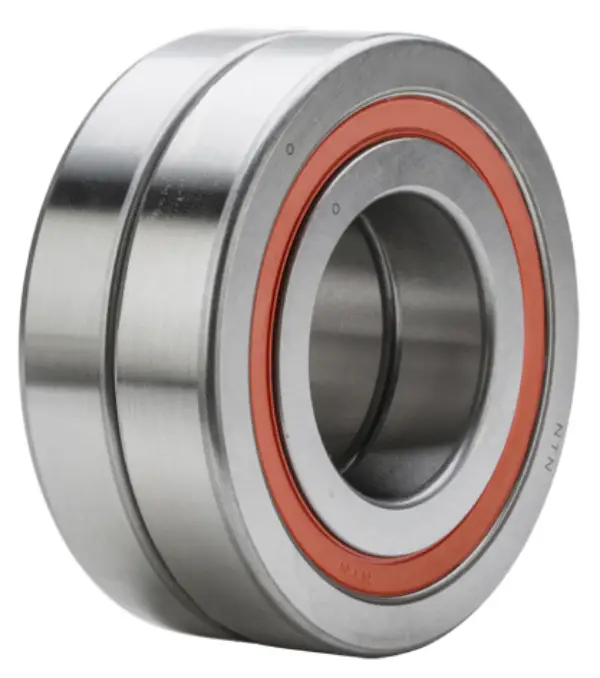

NTN BST50X100-1BLXLDT
Duplex Angular Contact Thrust Ball Bearings for Ball Screws
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Ball Screw Support Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Molded
Cage Material
Resin
Seal Type
Light Contact
Seal Material
Nitrile Rubber
Configuration
Two
Static Load Rating
305000 N
Dynamic Load Rating
101000 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

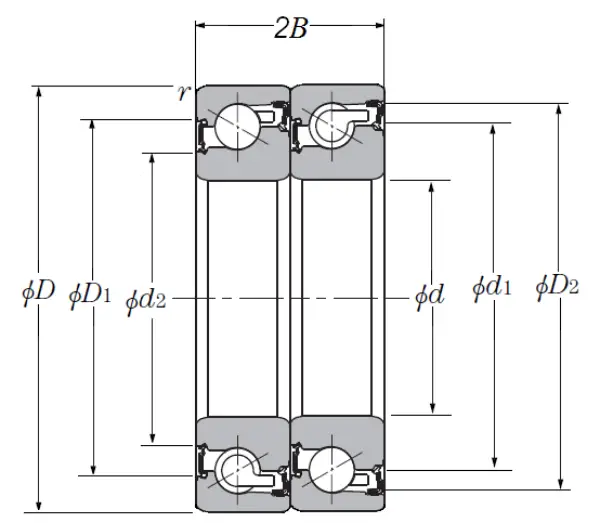

Dimensional Specifications
d
50.000 mm
D
100.000 mm
B
20.000 mm
2B
40.000 mm
d1
75.800 mm
d2
70.100 mm
D1
86.200 mm
D2
92.600 mm
r
1.000 mm
r1
0.600 mm
Contact Angle
60 º
