NTN CH7019HVJ04
Single Row Machline Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Hybrid Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Stratified
Cage Material
Phenolic
Ball Material
Ceramic
Limiting Speed - Oil
18850 RPM
Limiting Speed - Grease
12610 RPM
Precision
ISO Class 4
Configuration
One
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

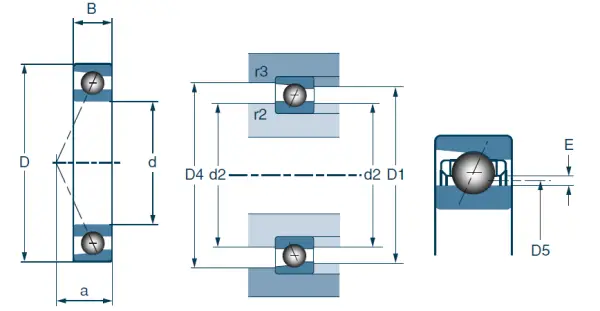

Dimensional Specifications
d
95.000 mm
D
145.000 mm
B
24.000 mm
r2 max
1.500 mm
r3 max
1.000 mm
Contact Angle
25 º
a (Load Center)
40.000 mm
d2
109.500 mm
D1
130.500 mm
D4
136.500 mm
D5
4.5197 mm
E
114.800 mm
Double Row Width
48.000 mm
Triple Row Width
72.000 mm
Quadruple Row Width
96.000 mm
