NTN CH71904CVUJ74
Single Row Machline Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Hybrid Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Stratified
Cage Material
Phenolic
Ball Material
Ceramic
Limiting Speed - Oil
78000 RPM
Limiting Speed - Grease
50700 RPM
Precision
ISO Class 4
Configuration
One
Preload
Light
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

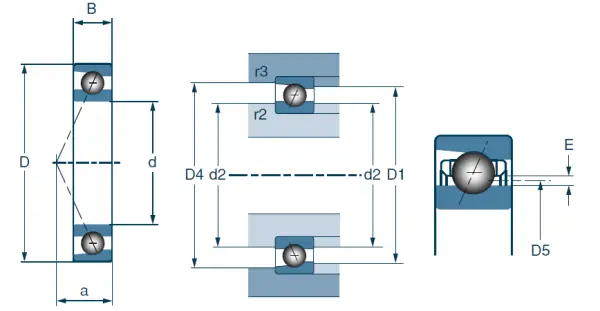

Dimensional Specifications
d
20.000 mm
D
37.000 mm
B
9.000 mm
r2 max
0.300 mm
r3 max
0.150 mm
Contact Angle
15 º
a (Load Center)
8.000 mm
d2
25.100 mm
d3
0.000 mm
D1
31.900 mm
D4
33.200 mm
D5
1.0551 mm
E
26.800 mm
Double Row Width
18.000 mm
Triple Row Width
27.000 mm
Quadruple Row Width
36.000 mm
