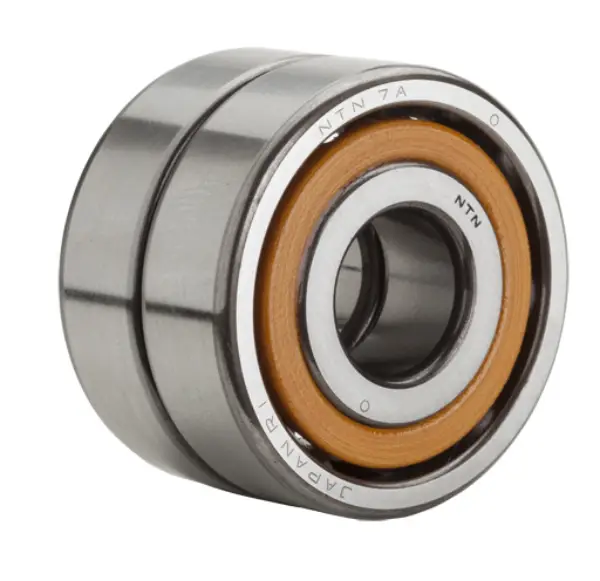

NTN CH71924HVDUJ74
Duplex Machline Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Stratified
Cage Material
Phenolic
Ball Material
Ceramic
Precision
ISO Class 4
Configuration
Two
Preload
Light
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

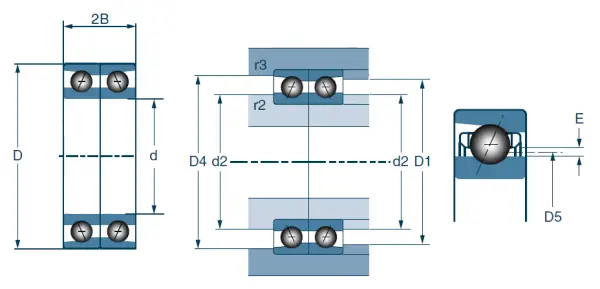

Dimensional Specifications
d
120.000 mm
D
165.000 mm
B
22.000 mm
2B
44.000 mm
r2 max
1.100 mm
r3 max
0.600 mm
Contact Angle
25 º
d2
133.500 mm
D1
151.500 mm
D4
157.500 mm
D5
137.700 mm
E
3.300 mm
