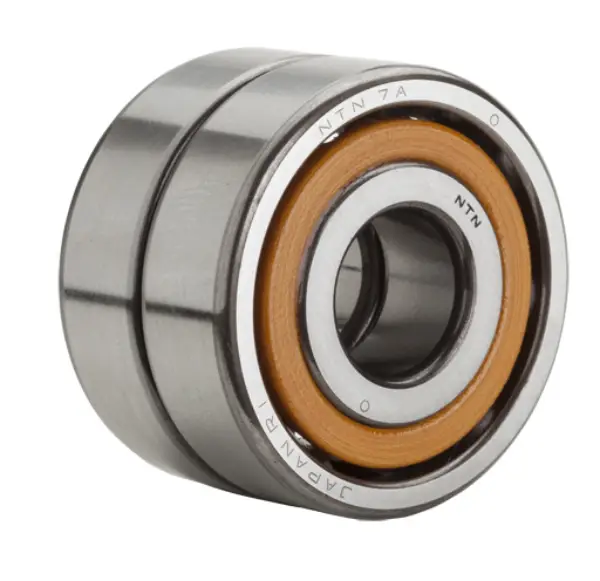

NTN CH7214CG1DUJ74
Duplex Machline Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Stratified
Cage Material
Phenolic
Ball Material
Ceramic
Precision
ISO Class 4
Configuration
Two
Preload
Light
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

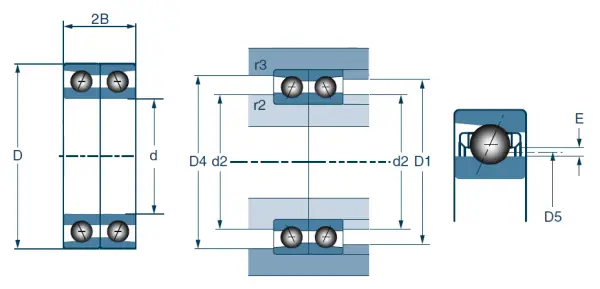

Dimensional Specifications
d
70.000 mm
D
125.000 mm
B
24.000 mm
2B
48.000 mm
r2 max
1.500 mm
r3 max
0.600 mm
Contact Angle
15 º
d2
86.000 mm
D1
109.000 mm
D4
116.000 mm
D5
91.400 mm
E
2.600 mm
