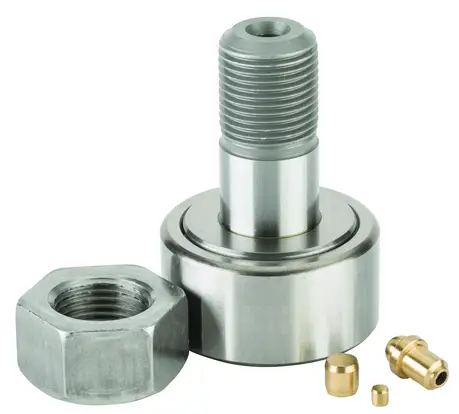

NTN CR10-1X
Cam Followers
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cam Follower
Material
Through Hardened Steel
Thread Type
Inch
Cage Material
Steel Plate Punched
Limiting Speed - Oil
25000 RPM
Limiting Speed - Grease
18000 RPM
Roller Type
Cylindrical
Bearing Type
Needle Roller Bearing
Outside Ring Type
Cylindrical
Enclosure
Open
Drive Type
Slot
Configuration
One
Torque
4 N·m
Static Load Rating
4200 N
Dynamic Load Rating
4050 N
Weight
0.022 kg
Operating Temperature Range
-40 to 120 ºC

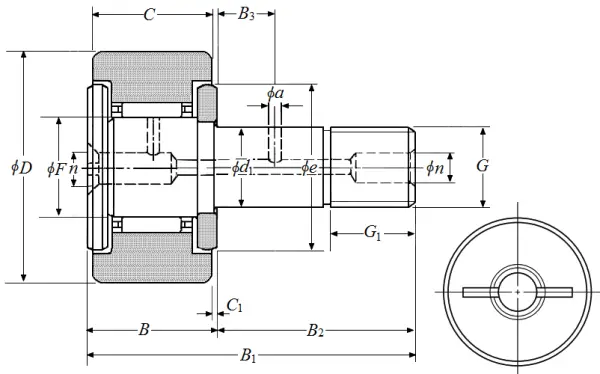

Dimensional Specifications
G
1/4-28UNF
B1
31.800 mm
B2
19.100 mm
D
15.875 mm
D Tolerance
0/-0.050 mm
B
12.700 mm
C
11.112 mm
C Tolerance
0/-0.130 mm
d1
6.350 mm
d1 Tolerance
0.025/0 mm
G1
7.900 mm
e
12.500 mm
F
8.000 mm
C1
0.800 mm
n
4.000 mm
Grease Nipple Size
NIP-B4
