NTN CR26XH
Cam Followers
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cam Follower
Material
Through Hardened Steel
Thread Type
Inch
Cage Material
Steel Plate Punched
Limiting Speed - Oil
10000 RPM
Limiting Speed - Grease
7500 RPM
Roller Type
Cylindrical
Bearing Type
Needle Roller Bearing
Outside Ring Type
Cylindrical
Enclosure
Open
Drive Type
Hex
Configuration
One
Torque
51 N·m
Static Load Rating
1360 N
Dynamic Load Rating
13300 N
Weight
0.265 kg
Operating Temperature Range
-40 to 120 ºC

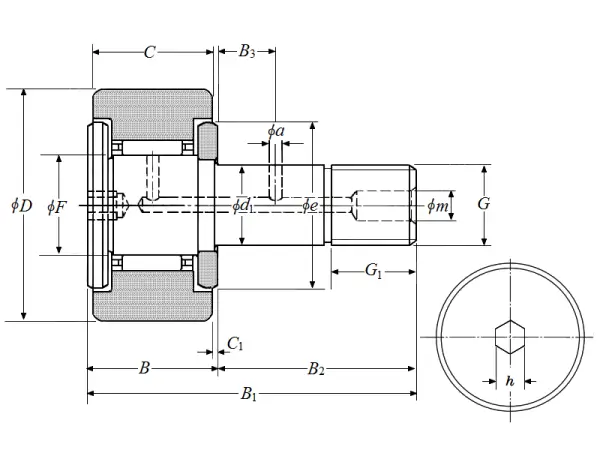

Dimensional Specifications
G
5/8-18UNF
B1
61.900 mm
B2
38.100 mm
D
41.275 mm
D Tolerance
0/-0.050 mm
B
23.800 mm
C
22.225 mm
C Tolerance
0/-0.130 mm
d1
15.875 mm
d1 Tolerance
0.025/0 mm
G1
19.100 mm
e
30.000 mm
B3
9.530 mm
a
4.000 mm
F
20.000 mm
C1
0.800 mm
h
7.938 mm
m
6.000 mm
Grease Nipple Size
NIP-B6
