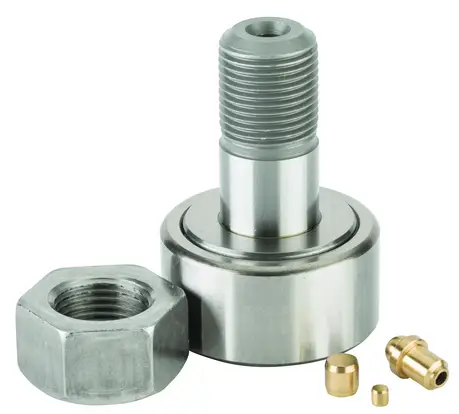

NTN CR30X
Cam Followers
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cam Follower
Material
Through Hardened Steel
Thread Type
Inch
Cage Material
Steel Plate Punched
Limiting Speed - Oil
8000 RPM
Limiting Speed - Grease
6000 RPM
Roller Type
Cylindrical
Bearing Type
Needle Roller Bearing
Outside Ring Type
Cylindrical
Enclosure
Open
Drive Type
Slot
Configuration
One
Torque
92 N·m
Static Load Rating
33500 N
Dynamic Load Rating
20700 N
Weight
0.420 kg
Operating Temperature Range
-40 to 120 ºC

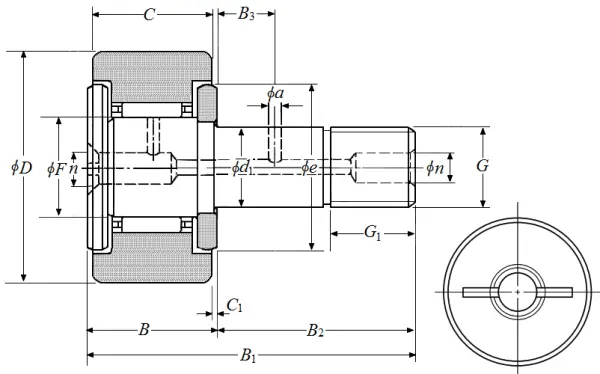

Dimensional Specifications
G
3/4-16UNF
B1
71.400 mm
B2
44.400 mm
D
47.625 mm
D Tolerance
0/-0.050 mm
B
27.000 mm
C
25.400 mm
C Tolerance
0/-0.130 mm
d1
19.050 mm
d1 Tolerance
0.025/0 mm
G1
22.200 mm
e
36.500 mm
B3
11.110 mm
a
4.000 mm
F
25.000 mm
C1
0.800 mm
n
6.000 mm
Grease Nipple Size
NIP-B6
