NTN CR8-1XH
Cam Followers
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cam Follower
Material
Through Hardened Steel
Thread Type
Inch
Cage Material
Nylon
Limiting Speed - Oil
28000 RPM
Limiting Speed - Grease
20000 RPM
Roller Type
Cylindrical
Bearing Type
Needle Roller Bearing
Outside Ring Type
Cylindrical
Enclosure
Open
Drive Type
Hex
Configuration
One
Torque
2 N·m
Static Load Rating
287 N
Dynamic Load Rating
2820 N
Weight
0.010 kg
Operating Temperature Range
-40 to 120 ºC

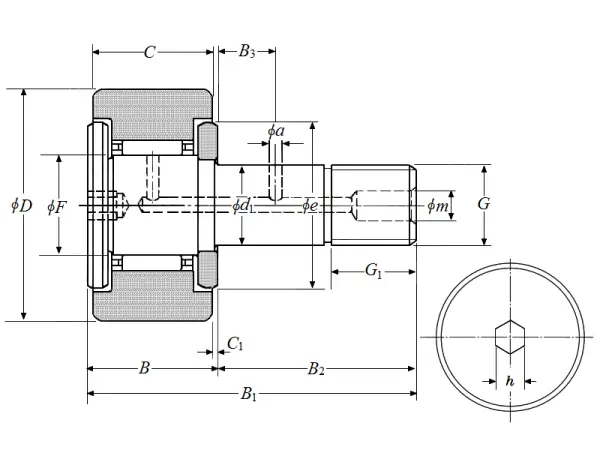

Dimensional Specifications
G
No.10-32UNF
B1
27.000 mm
B2
15.900 mm
D
12.700 mm
D Tolerance
0/-0.050 mm
B
11.100 mm
C
9.525 mm
C Tolerance
0/-0.130 mm
d1
4.762 mm
d1 Tolerance
0.025/0 mm
G1
6.400 mm
e
10.000 mm
F
6.000 mm
C1
0.800 mm
h
3.175 mm
Grease Nipple Size
NIP-B3
