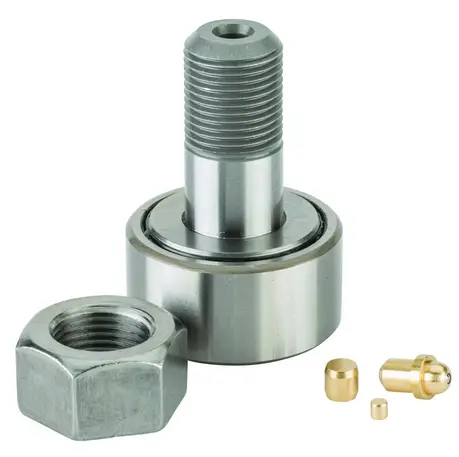

NTN CRV12LL
Cam Followers
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cam Follower
Material
Through Hardened Steel
Thread Type
Inch
Cage Material
None
Limiting Speed - Oil
10000 RPM
Limiting Speed - Grease
9000 RPM
Roller Type
Crowned
Bearing Type
Needle Roller Bearing
Outside Ring Type
Spherical
Enclosure
Double Sealed
Drive Type
Slot
Configuration
One
Torque
13 N·m
Static Load Rating
13300 N
Dynamic Load Rating
8050 N
Load Rating of Track
1380 N
Weight
0.038 kg
Operating Temperature Range
-40 to 120 ºC

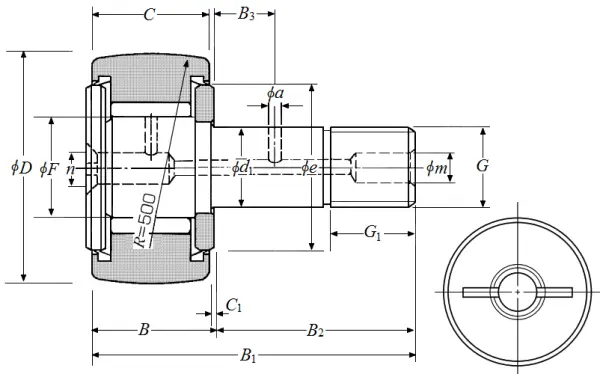

Dimensional Specifications
G
3/8-24UNF
B1
36.500 mm
B2
22.200 mm
D
19.050 mm
D Tolerance
0/-0.050 mm
B
14.300 mm
C
12.700 mm
C Tolerance
0/-0.130 mm
d1
9.525 mm
d1 Tolerance
0.025/0 mm
G1
9.500 mm
e
15.500 mm
B3
6.350 mm
a
3.000 mm
F
11.000 mm
C1
0.800 mm
n
4.000 mm
m
4.000 mm
Grease Nipple Size
NIP-B4
