NTN CRV16
Cam Followers
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cam Follower
Material
Through Hardened Steel
Thread Type
Inch
Cage Material
None
Limiting Speed - Oil
9200 RPM
Limiting Speed - Grease
7100 RPM
Roller Type
Crowned
Bearing Type
Needle Roller Bearing
Outside Ring Type
Spherical
Enclosure
Open
Drive Type
Slot
Configuration
One
Torque
18 N·m
Static Load Rating
18900 N
Dynamic Load Rating
11700 N
Load Rating of Track
2060 N
Weight
0.080 kg
Operating Temperature Range
-40 to 120 ºC

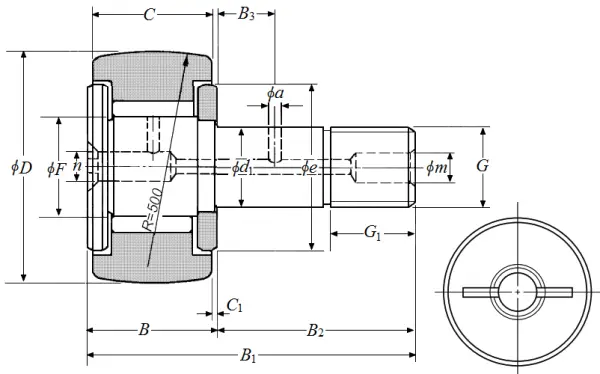

Dimensional Specifications
G
7/16-20UNF
B1
43.000 mm
B2
25.400 mm
D
25.400 mm
D Tolerance
0/-0.050 mm
B
17.600 mm
C
15.875 mm
C Tolerance
0/-0.130 mm
d1
11.112 mm
d1 Tolerance
0.025/0 mm
G1
12.700 mm
e
19.500 mm
B3
6.350 mm
a
3.000 mm
F
14.000 mm
C1
0.800 mm
n
4.000 mm
m
4.000 mm
Grease Nipple Size
NIP-B4
