NTN CRV28X
Cam Followers
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Cam Follower
Material
Through Hardened Steel
Thread Type
Inch
Cage Material
None
Limiting Speed - Oil
5300 RPM
Limiting Speed - Grease
4100 RPM
Roller Type
Cylindrical
Bearing Type
Needle Roller Bearing
Outside Ring Type
Cylindrical
Enclosure
Open
Drive Type
Slot
Configuration
One
Torque
92 N·m
Static Load Rating
60500 N
Dynamic Load Rating
28400 N
Weight
0.400 kg
Operating Temperature Range
-40 to 120 ºC

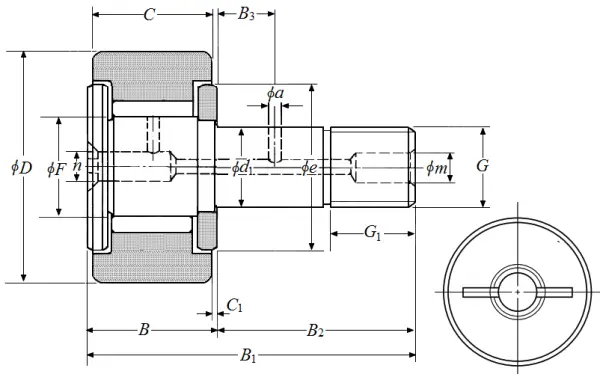

Dimensional Specifications
G
3/4-16UNF
B1
71.400 mm
B2
44.500 mm
D
44.450 mm
D Tolerance
0/-0.050 mm
B
26.900 mm
C
25.400 mm
C Tolerance
0/-0.130 mm
d1
19.050 mm
d1 Tolerance
0.025/0 mm
G1
22.200 mm
e
36.500 mm
B3
11.110 mm
a
4.000 mm
F
24.650 mm
C1
0.800 mm
n
6.000 mm
m
6.000 mm
Grease Nipple Size
NIP-B6
