NTN CRV36XH
Cam Followers
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Cam Follower
Material
Through Hardened Steel
Thread Type
Inch
Cage Material
None
Limiting Speed - Oil
4800 RPM
Limiting Speed - Grease
3700 RPM
Roller Type
Cylindrical
Bearing Type
Needle Roller Bearing
Outside Ring Type
Cylindrical
Enclosure
Open
Drive Type
Hex
Configuration
One
Torque
150 N·m
Static Load Rating
4200 N
Dynamic Load Rating
41000 N
Weight
0.780 kg
Operating Temperature Range
-40 to 120 ºC

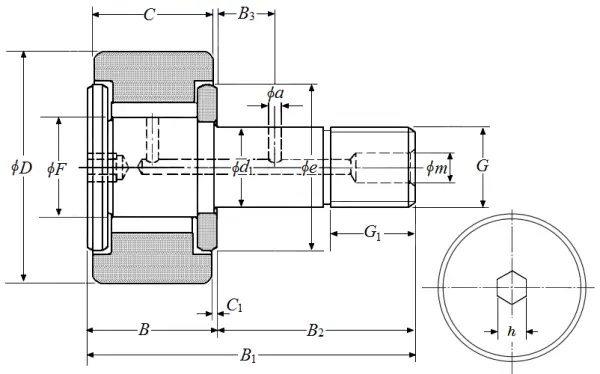

Dimensional Specifications
G
7/8-14UNF
B1
84.100 mm
B2
50.800 mm
D
57.150 mm
D Tolerance
0/-0.050 mm
B
33.300 mm
C
31.750 mm
C Tolerance
0/-0.130 mm
d1
22.225 mm
d1 Tolerance
0.025/0 mm
G1
25.400 mm
e
36.500 mm
B3
12.700 mm
a
5.000 mm
F
26.710 mm
C1
0.800 mm
h
7.938 mm
m
6.000 mm
Grease Nipple Size
NIP-B6
