NTN CRV40
Cam Followers
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Cam Follower
Material
Through Hardened Steel
Thread Type
Inch
Cage Material
None
Limiting Speed - Oil
4100 RPM
Limiting Speed - Grease
3200 RPM
Roller Type
Crowned
Bearing Type
Needle Roller Bearing
Outside Ring Type
Spherical
Enclosure
Open
Drive Type
Slot
Configuration
One
Torque
230 N·m
Static Load Rating
119000 N
Dynamic Load Rating
54500 N
Load Rating of Track
7200 N
Weight
1.200 kg
Operating Temperature Range
-40 to 120 ºC

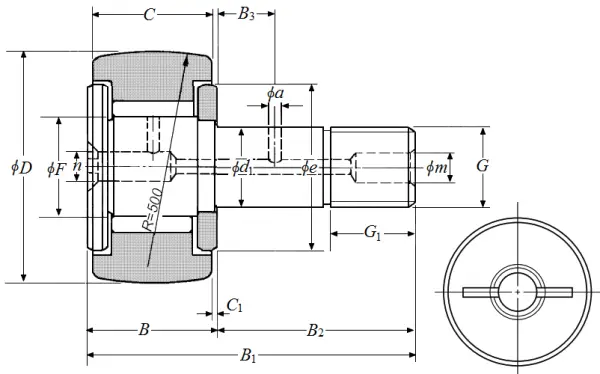

Dimensional Specifications
G
1-14UNF
B1
96.800 mm
B2
57.200 mm
D
63.500 mm
D Tolerance
0/-0.050 mm
B
39.600 mm
C
38.100 mm
C Tolerance
0/-0.130 mm
d1
25.400 mm
d1 Tolerance
0.025/0 mm
G1
28.600 mm
e
44.000 mm
B3
14.290 mm
a
5.000 mm
F
31.150 mm
C1
0.800 mm
n
6.000 mm
m
6.000 mm
Grease Nipple Size
NIP-B6
