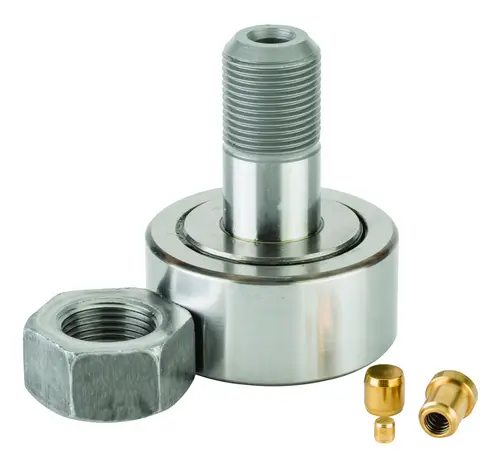

NTN CRV52XLL
Cam Followers
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Cam Follower
Material
Through Hardened Steel
Thread Type
Inch
Cage Material
None
Limiting Speed - Oil
3500 RPM
Limiting Speed - Grease
2700 RPM
Roller Type
Cylindrical
Bearing Type
Needle Roller Bearing
Outside Ring Type
Cylindrical
Enclosure
Double Sealed
Drive Type
Slot
Configuration
One
Torque
435 N·m
Static Load Rating
177000 N
Dynamic Load Rating
76500 N
Weight
2.200 kg
Operating Temperature Range
-40 to 120 ºC

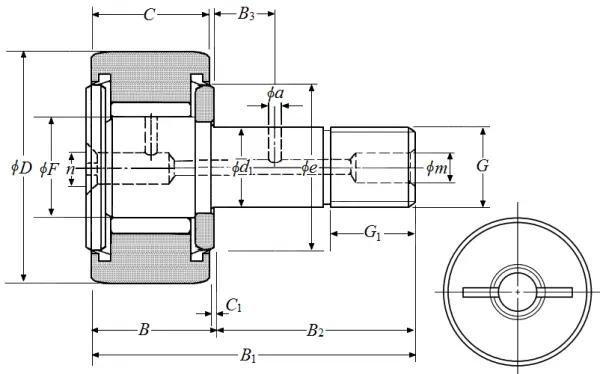

Dimensional Specifications
G
1-1/4-12UNF
B1
109.500 mm
B2
63.500 mm
D
82.550 mm
D Tolerance
0/-0.050 mm
B
46.000 mm
C
44.450 mm
C Tolerance
0/-0.130 mm
d1
31.750 mm
d1 Tolerance
0.025/0 mm
G1
31.800 mm
e
53.000 mm
B3
15.880 mm
a
5.000 mm
F
36.850 mm
C1
0.800 mm
n
8.000 mm
m
8.000 mm
Grease Nipple Size
NIP-B8
