NTN CRV64H
Cam Followers
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Cam Follower
Material
Through Hardened Steel
Thread Type
Inch
Cage Material
None
Limiting Speed - Oil
2800 RPM
Limiting Speed - Grease
2200 RPM
Roller Type
Crowned
Bearing Type
Needle Roller Bearing
Outside Ring Type
Spherical
Enclosure
Open
Drive Type
Hex
Configuration
One
Torque
760 N·m
Static Load Rating
10800 N
Dynamic Load Rating
106000 N
Load Rating of Track
13200 N
Weight
4.320 kg
Operating Temperature Range
-40 to 120 ºC

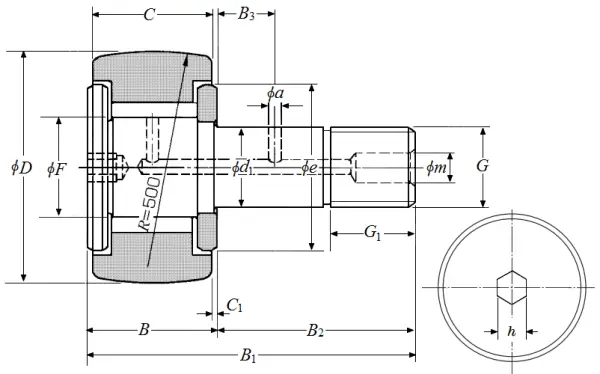

Dimensional Specifications
G
1-1/2-12UNF
B1
147.600 mm
B2
88.900 mm
D
101.600 mm
D Tolerance
0/-0.050 mm
B
58.700 mm
C
57.150 mm
C Tolerance
0/-0.130 mm
d1
38.100 mm
d1 Tolerance
0.025/0 mm
G1
38.100 mm
e
63.000 mm
B3
19.050 mm
a
5.000 mm
F
44.500 mm
C1
0.800 mm
h
19.050 mm
m
8.000 mm
Grease Nipple Size
NIP-B8
