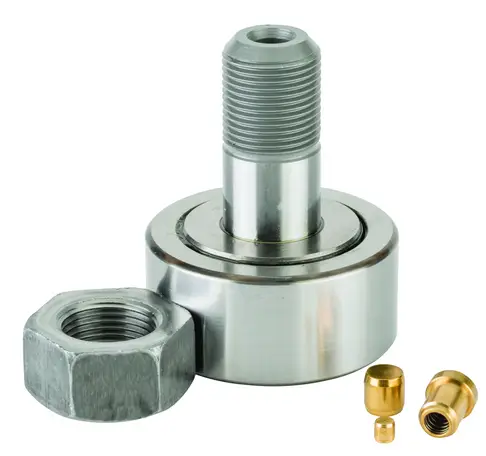

NTN CRV80XLL
Cam Followers
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Cam Follower
Material
Through Hardened Steel
Thread Type
Inch
Cage Material
None
Limiting Speed - Oil
1900 RPM
Limiting Speed - Grease
1500 RPM
Roller Type
Cylindrical
Bearing Type
Needle Roller Bearing
Outside Ring Type
Cylindrical
Enclosure
Double Sealed
Drive Type
Slot
Configuration
One
Torque
1820 N·m
Static Load Rating
520000 N
Dynamic Load Rating
189000 N
Weight
8.800 kg
Operating Temperature Range
-40 to 120 ºC

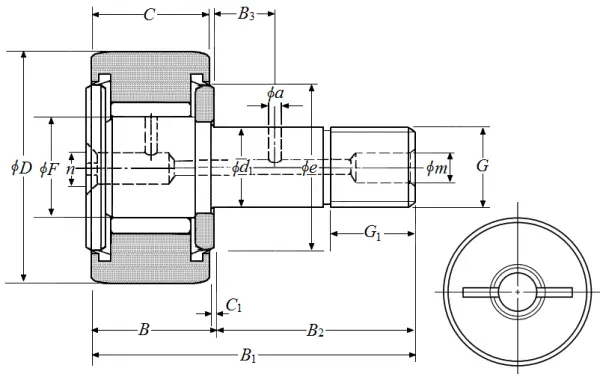

Dimensional Specifications
G
2-12UNF
B1
200.000 mm
B2
128.600 mm
D
127.001 mm
D Tolerance
0/-0.050 mm
B
71.400 mm
C
69.850 mm
C Tolerance
0/-0.130 mm
d1
50.800 mm
d1 Tolerance
0.025/0 mm
G1
65.100 mm
e
89.000 mm
B3
22.230 mm
a
5.000 mm
F
68.700 mm
C1
0.800 mm
n
8.000 mm
m
8.000 mm
Grease Nipple Size
NIP-B8
