NTN CRV96
Cam Followers
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Cam Follower
Material
Through Hardened Steel
Thread Type
Inch
Cage Material
None
Limiting Speed - Oil
1500 RPM
Limiting Speed - Grease
1200 RPM
Roller Type
Crowned
Bearing Type
Needle Roller Bearing
Outside Ring Type
Spherical
Enclosure
Open
Drive Type
Slot
Configuration
One
Torque
3550 N·m
Static Load Rating
675000 N
Dynamic Load Rating
260000 N
Load Rating of Track
22100 N
Weight
15.300 kg
Operating Temperature Range
-40 to 120 ºC

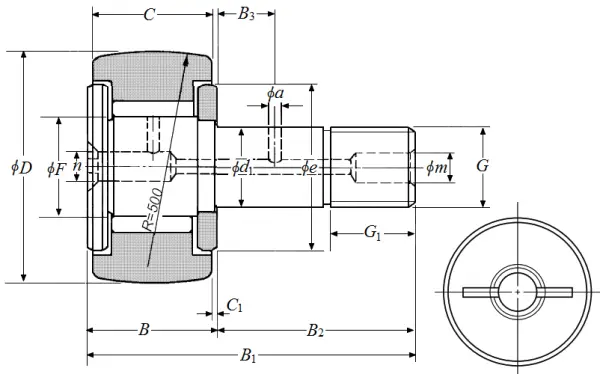

Dimensional Specifications
G
2-1/2-12UNF
B1
236.600 mm
B2
152.400 mm
D
152.401 mm
D Tolerance
0/-0.050 mm
B
84.200 mm
C
82.550 mm
C Tolerance
0/-0.130 mm
d1
63.500 mm
d1 Tolerance
0.025/0 mm
G1
76.200 mm
e
110.000 mm
B3
25.400 mm
a
5.000 mm
F
81.350 mm
C1
0.800 mm
n
8.000 mm
m
8.000 mm
Grease Nipple Size
NIP-B8
