NTN DCL3010
Drawn Cup Needle Roller Bearing
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Drawn Cup Needle Roller Bearing
Bore Type
Round
Material
Steel
Cage Material
Steel
Limiting Speed - Oil
5000 RPM
Limiting Speed - Grease
3300 RPM
Bearing Type
Needle Roller Bearing
Configuration
One
Enclosure
Open
Radial Internal Clearance
CN
Precision
ISO Class 0
Oil Hole
w/o Oil Hole
Static Load Rating
38000 N
Dynamic Load Rating
24200 N
Operating Temperature Range
-40 to 120 ºC

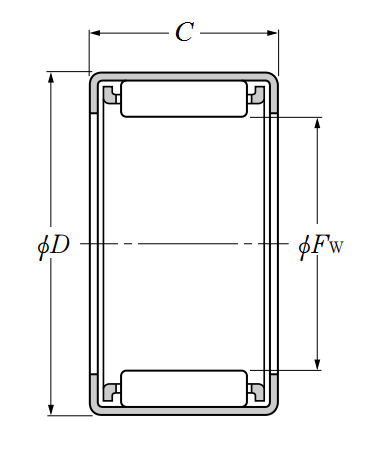

Dimensional Specifications
Fw
47.625 mm
D
57.150 mm
C
15.875 mm
