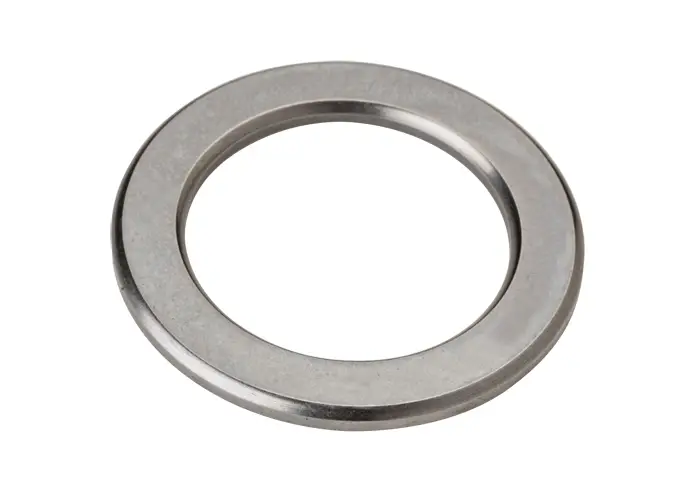

NTN GS81100
Outer Rings for Thrust Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Outer Ring
Bore Type
Round
Configuration
One
Material
High Carbon Chrome Steel
Precision
ISO Class 0
Weight
0.008 kg
Operating Temperature Range
-40 to 120 ºC

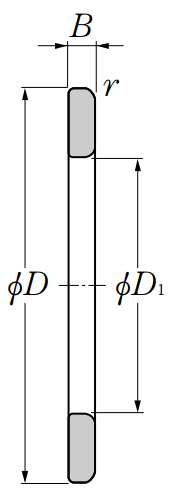

Dimensional Specifications
D1 (0.5/0.2)
10.000 mm
D
24.000 mm
B
2.750 mm
r
0.300 mm
