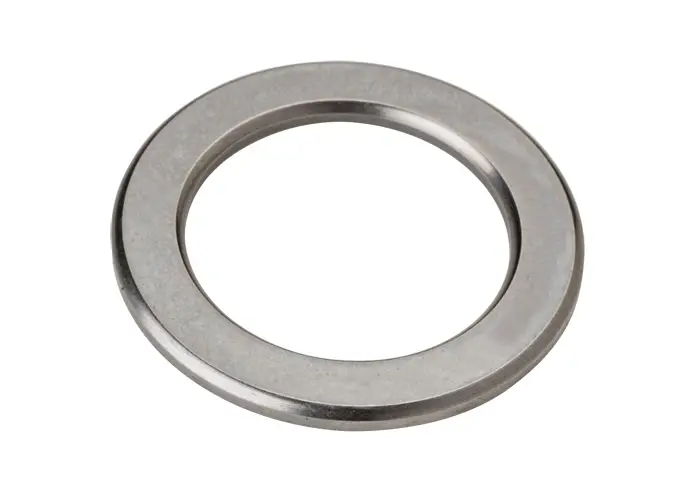

NTN GS81113
Outer Rings for Thrust Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Outer Ring
Bore Type
Round
Configuration
One
Material
High Carbon Chrome Steel
Precision
ISO Class 0
Weight
0.125 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
D1 (0.5/0.2)
67.000 mm
D
90.000 mm
B
5.250 mm
r
1.000 mm
