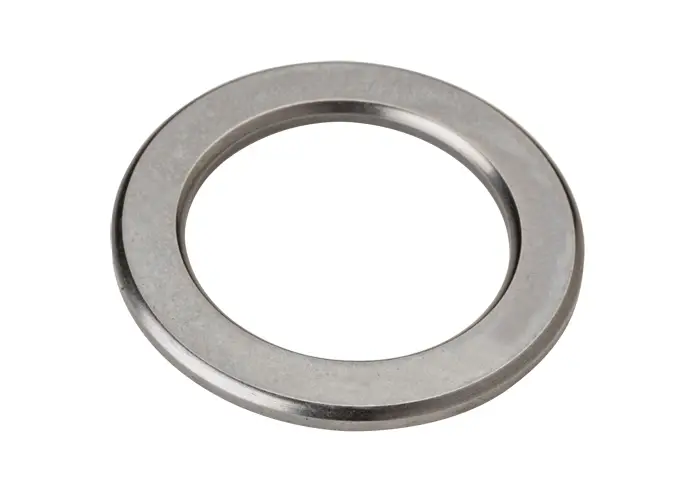

NTN GS81132

Outer Rings for Thrust Roller Bearings

(BRAND):NTN
(Availability):In Stock

Detailed data of

GS81132

Technical Specifications

Type Outer Ring
Bore Type Round
Configuration One
Material High Carbon Chrome Steel
Precision ISO Class 0
Weight 0.840 kg
Operating Temperature Range -40 to 120 ºC

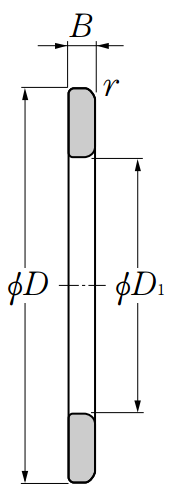

Dimensional Specifications

D1 (0.5/0.2) 162.000 mm
D 200.000 mm
B 9.500 mm
r 1.000 mm
