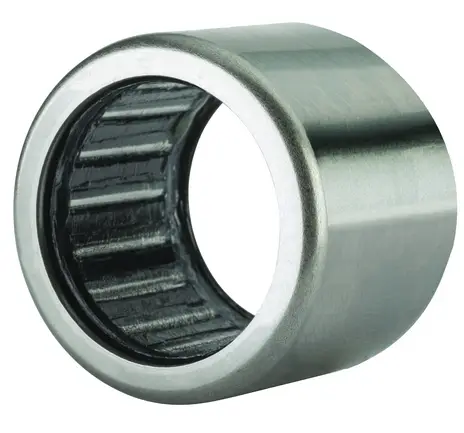

NTN HMK0814LL
Drawn Cup Needle Roller Bearing
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Drawn Cup Needle Roller Bearing
Bore Type
Round
Material
Steel
Cage Material
Steel
Limiting Speed - Grease
10000 RPM
Seal Material
Nitrile Rubber
Bearing Type
Needle Roller Bearing
Configuration
One
Enclosure
Double Sealed
Radial Internal Clearance
CN
Precision
ISO Class 0
Oil Hole
w/o Oil Hole
Static Load Rating
2870 N
Dynamic Load Rating
3800 N
Weight
0.008 kg
Operating Temperature Range
-40 to 120 ºC

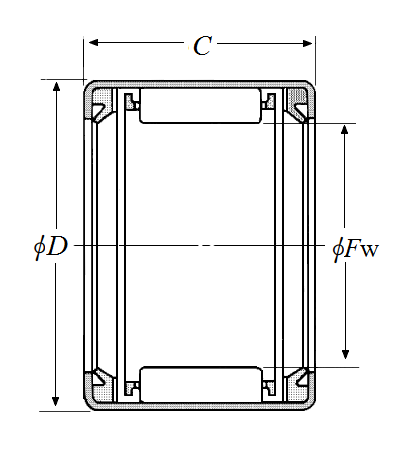

Dimensional Specifications
Fw
8.000 mm
D
15.000 mm
C
14.000 mm
