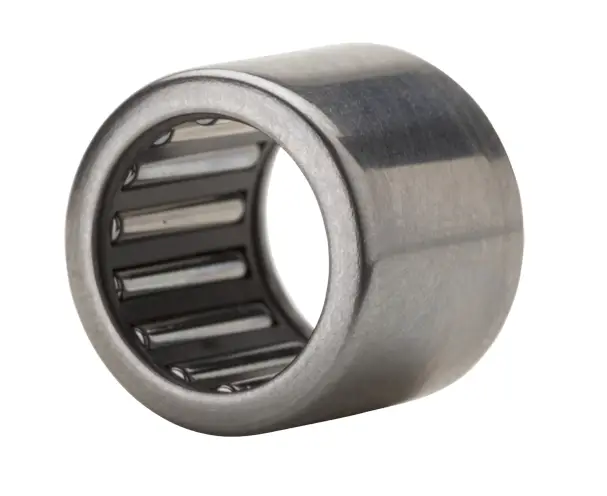

NTN HMK1416V10
Drawn Cup Needle Roller Bearing
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Drawn Cup Needle Roller Bearing
Bore Type
Round
Material
Steel
Cage Material
Steel
Bearing Type
Needle Roller Bearing
Configuration
One
Enclosure
Open
Radial Internal Clearance
CN
Precision
ISO Class 0
Oil Hole
w/o Oil Hole
Static Load Rating
12000 N
Dynamic Load Rating
11500 N
Weight
0.015 kg
Operating Temperature Range
-40 to 120 ºC

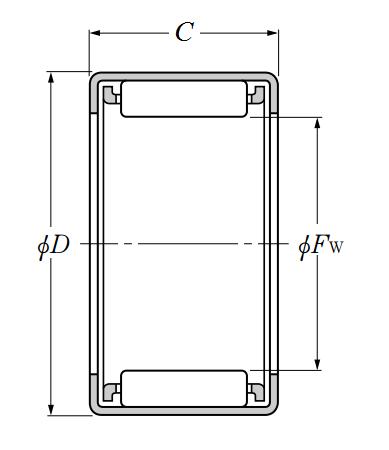

Dimensional Specifications
Fw
14.000 mm
D
22.000 mm
C
16.000 mm
