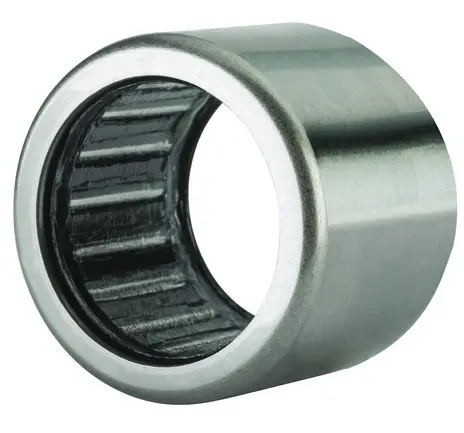

NTN HMK1922LL
Drawn Cup Needle Roller Bearing
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Drawn Cup Needle Roller Bearing
Bore Type
Round
Material
Steel
Cage Material
Steel
Limiting Speed - Grease
8500 RPM
Seal Material
Nitrile Rubber
Bearing Type
Needle Roller Bearing
Configuration
One
Enclosure
Double Sealed
Radial Internal Clearance
CN
Precision
ISO Class 0
Oil Hole
w/o Oil Hole
Static Load Rating
16300 N
Dynamic Load Rating
13900 N
Weight
0.029 kg
Operating Temperature Range
-40 to 120 ºC

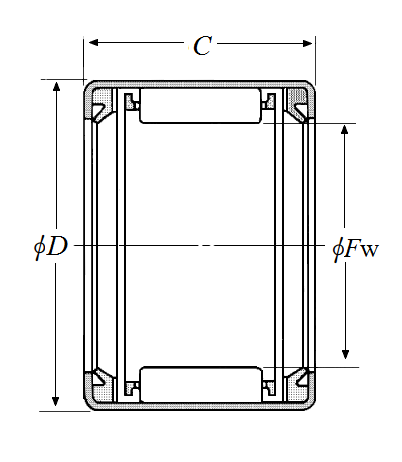

Dimensional Specifications
Fw
19.000 mm
D
27.000 mm
C
22.000 mm
