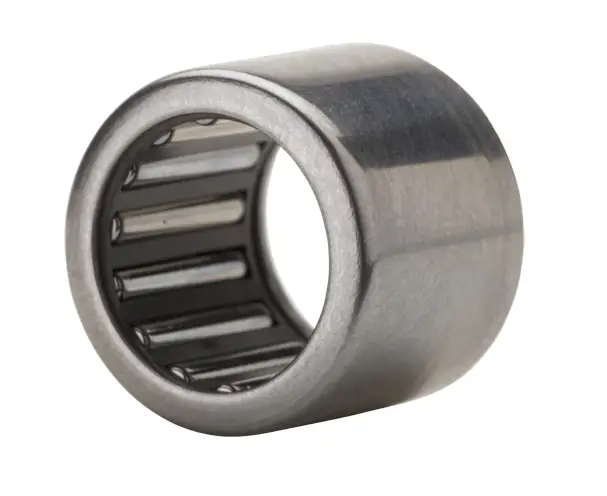

NTN HMK2030
Drawn Cup Needle Roller Bearing
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Drawn Cup Needle Roller Bearing
Bore Type
Round
Material
Steel
Cage Material
Steel
Limiting Speed - Oil
12000 RPM
Limiting Speed - Grease
8000 RPM
Bearing Type
Needle Roller Bearing
Configuration
One
Enclosure
Open
Radial Internal Clearance
CN
Precision
ISO Class 0
Oil Hole
w/o Oil Hole
Static Load Rating
42000 N
Dynamic Load Rating
26100 N
Weight
0.041 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
Fw
20.000 mm
D
27.000 mm
C
30.000 mm
