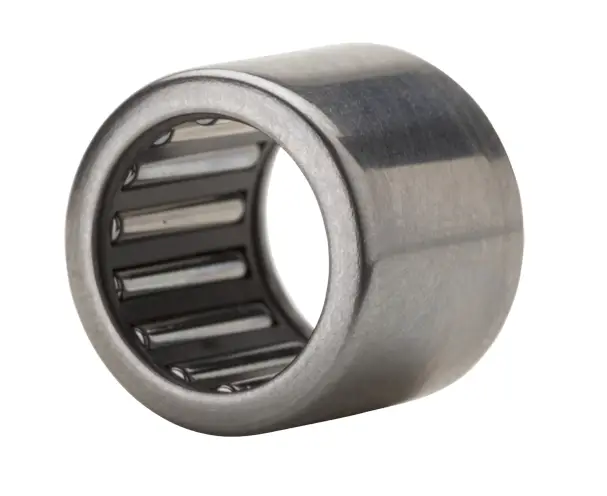

NTN HMK2420
Drawn Cup Needle Roller Bearing
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Drawn Cup Needle Roller Bearing
Bore Type
Round
Material
Steel
Cage Material
Steel
Limiting Speed - Oil
10000 RPM
Limiting Speed - Grease
6500 RPM
Bearing Type
Needle Roller Bearing
Configuration
One
Enclosure
Open
Radial Internal Clearance
CN
Precision
ISO Class 0
Oil Hole
w/o Oil Hole
Static Load Rating
29100 N
Dynamic Load Rating
18800 N
Weight
0.032 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
Fw
24.000 mm
D
31.000 mm
C
20.000 mm
