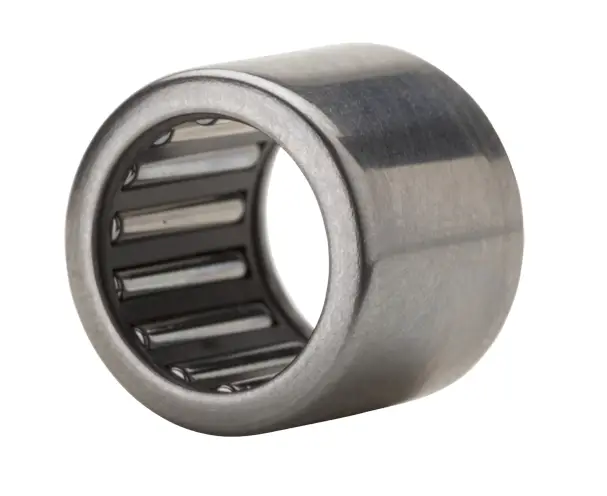

NTN HMK2515C
Drawn Cup Needle Roller Bearing
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Drawn Cup Needle Roller Bearing
Bore Type
Round
Material
Steel
Cage Material
Steel
Limiting Speed - Oil
9500 RPM
Limiting Speed - Grease
6500 RPM
Bearing Type
Needle Roller Bearing
Configuration
One
Enclosure
Open
Radial Internal Clearance
CN
Precision
ISO Class 0
Oil Hole
w/o Oil Hole
Static Load Rating
19900 N
Dynamic Load Rating
15200 N
Weight
0.029 kg
Operating Temperature Range
-40 to 120 ºC

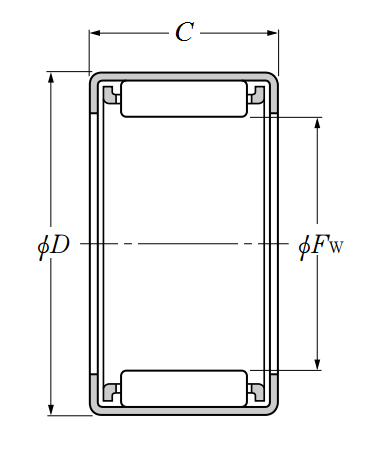

Dimensional Specifications
Fw
25.000 mm
D
33.000 mm
C
15.000 mm
