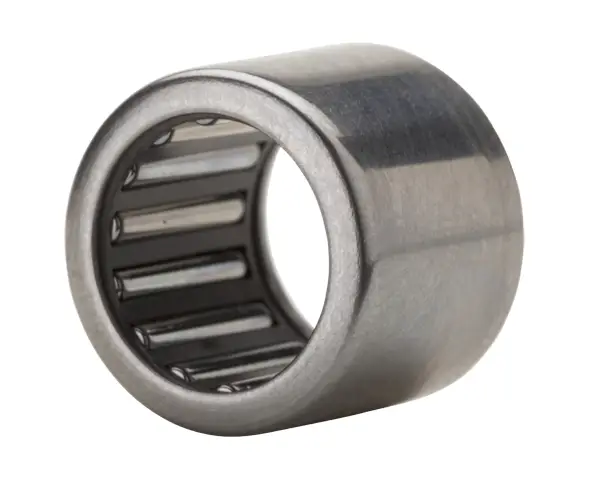

NTN HMK4015V3
Drawn Cup Needle Roller Bearing
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Drawn Cup Needle Roller Bearing
Bore Type
Round
Material
Steel
Cage Material
Steel
Bearing Type
Needle Roller Bearing
Configuration
One
Enclosure
Open
Radial Internal Clearance
CN
Precision
ISO Class 0
Oil Hole
w/o Oil Hole
Static Load Rating
32500 N
Dynamic Load Rating
23100 N
Weight
0.050 kg
Operating Temperature Range
-40 to 120 ºC

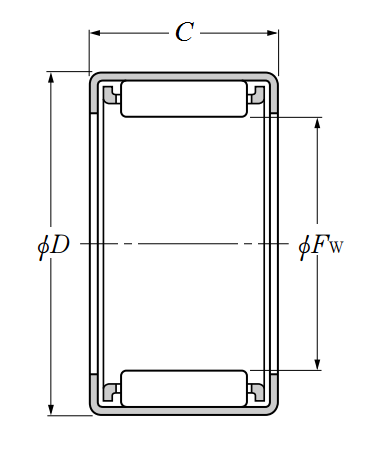

Dimensional Specifications
Fw
40.000 mm
D
50.000 mm
C
15.000 mm
