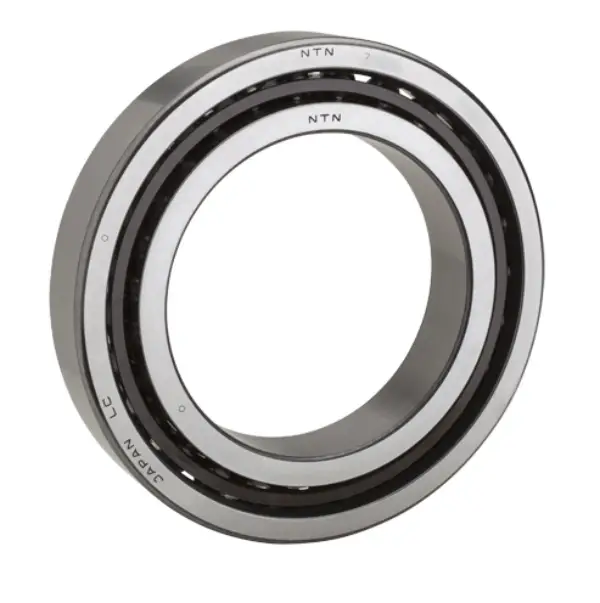

NTN HSB013C
Ultra High-Speed Single Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Fiber Glass Reinforced
Cage Material
Nylon
Ball Material
Steel
Limiting Speed - Oil
15000 RPM
Limiting Speed - Grease
11000 RPM
Configuration
One
Factor
10.8
Static Load Rating
15800 N
Dynamic Load Rating
24000 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

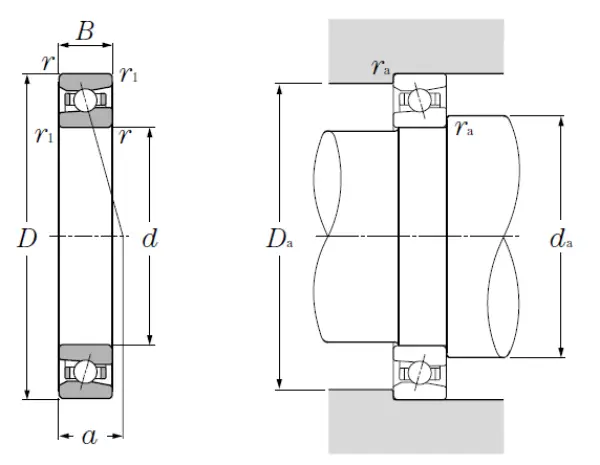

Dimensional Specifications
d
65.000 mm
D
100.000 mm
B
18.000 mm
r
1.100 mm
r1
0.600 mm
Contact Angle
15 º
a
20.000 mm
da min
72.000 mm
Da max
93.000 mm
ras max
1.000 mm
Double Row Width
36.000 mm
Triple Row Width
54.000 mm
Quadruple Row Width
72.000 mm
