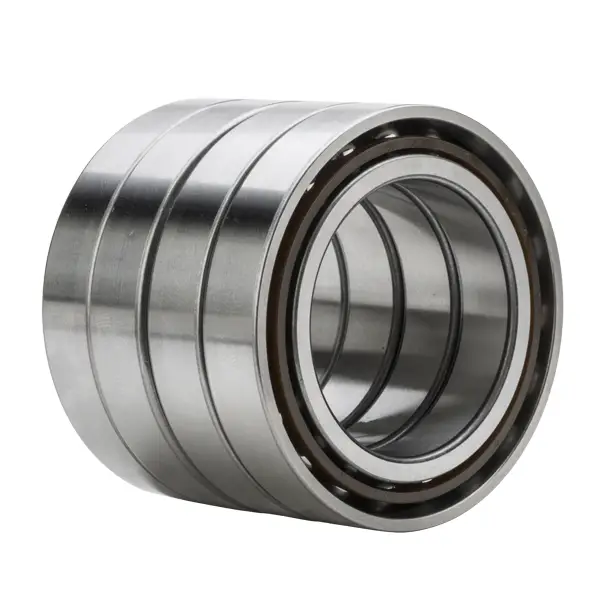

NTN HSB013CDTBT/GLP4
Ultra High-Speed Multi-Row Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Fiber Glass Reinforced
Cage Material
Nylon
Ball Material
Steel
Precision
ISO Class 4
Configuration
Two
Preload
Light
Enclosure
Open
Weight
1.783 kg
Operating Temperature Range
-40 to 120 ºC

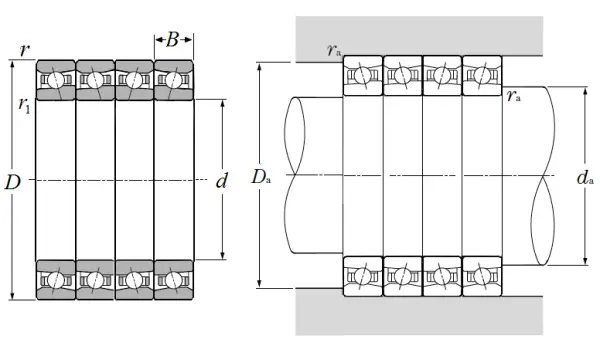

Dimensional Specifications
d
65.000 mm
D
100.000 mm
B
18.000 mm
Total Width
72.000 mm
r
1.100 mm
r1
0.600 mm
Contact Angle
15 º
da min
72.000 mm
Da max
93.000 mm
ras max
1.000 mm
