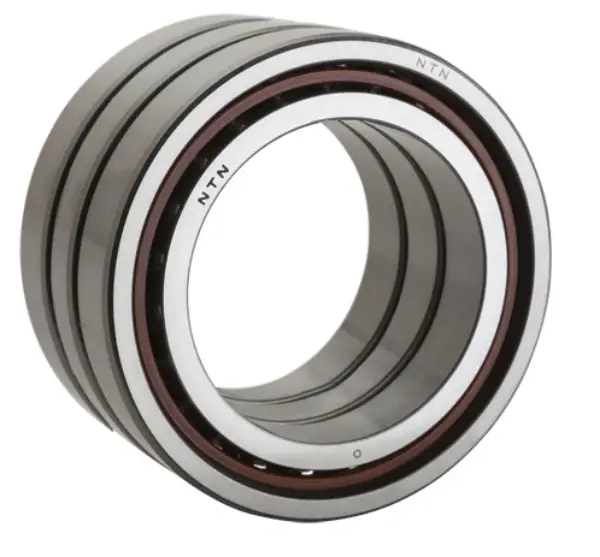

NTN HSB014CDBT/GNP5
Ultra High-Speed Multi-Row Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Fiber Glass Reinforced
Cage Material
Nylon
Ball Material
Steel
Precision
ISO Class 5
Configuration
Three
Preload
Normal
Enclosure
Open
Weight
1.920 kg
Operating Temperature Range
-40 to 120 ºC

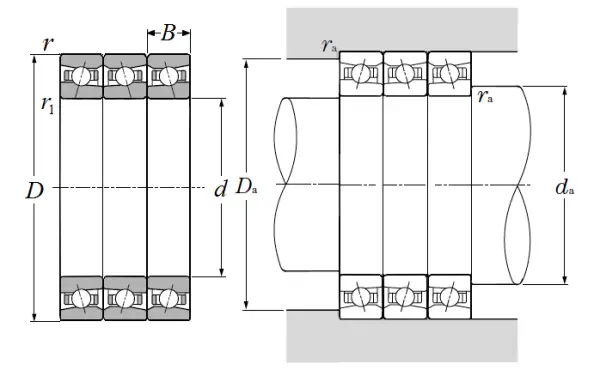

Dimensional Specifications
d
70.000 mm
D
110.000 mm
B
20.000 mm
Total Width
60.000 mm
r
1.100 mm
r1
0.600 mm
Contact Angle
15 º
da min
77.000 mm
Da max
103.000 mm
ras max
1.000 mm
