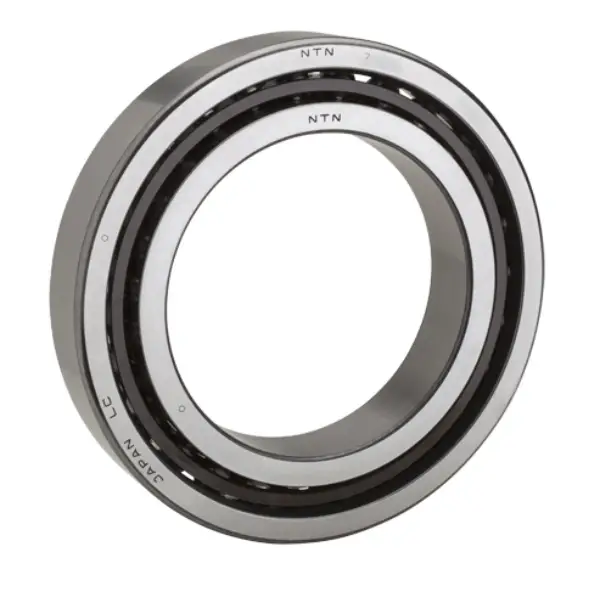

NTN HSB015C
Ultra High-Speed Single Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Fiber Glass Reinforced
Cage Material
Nylon
Ball Material
Steel
Limiting Speed - Oil
13000 RPM
Limiting Speed - Grease
9500 RPM
Configuration
One
Factor
10.9
Static Load Rating
22400 N
Dynamic Load Rating
31500 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

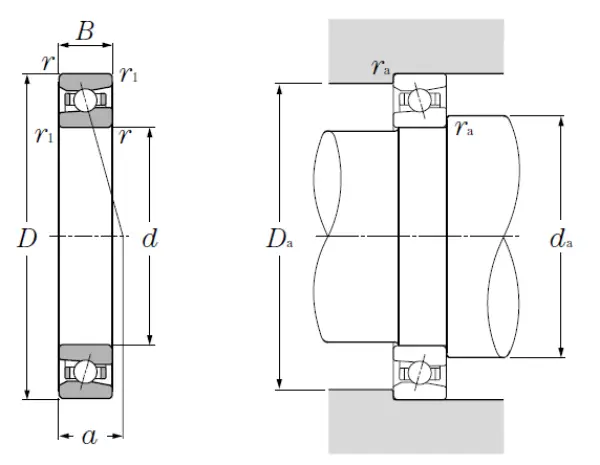

Dimensional Specifications
d
75.000 mm
D
115.000 mm
B
20.000 mm
r
1.100 mm
r1
0.600 mm
Contact Angle
15 º
a
22.500 mm
da min
82.000 mm
Da max
108.000 mm
ras max
1.000 mm
Double Row Width
40.000 mm
Triple Row Width
60.000 mm
Quadruple Row Width
80.000 mm
