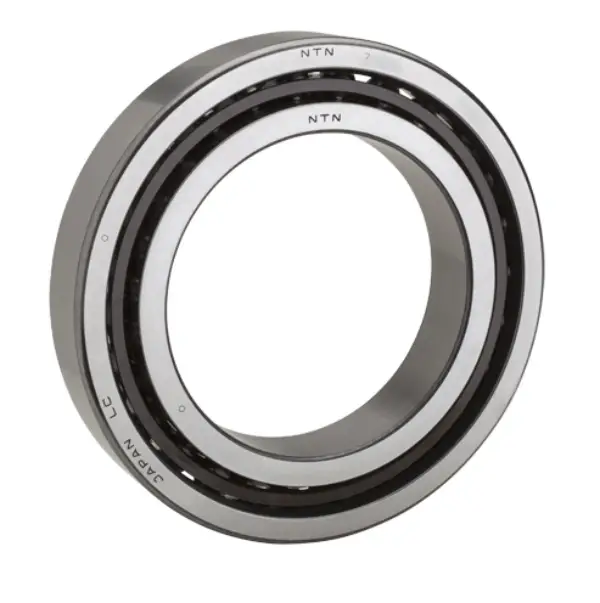

NTN HSB016CT1G/GNP4
Ultra High-Speed Single Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Fiber Glass Reinforced
Cage Material
Nylon
Ball Material
Steel
Limiting Speed - Oil
12000 RPM
Limiting Speed - Grease
8900 RPM
Precision
ISO Class 4
Configuration
One
Preload
Normal
Factor
10.9
Static Load Rating
25700 N
Dynamic Load Rating
36000 N
Enclosure
Open
Weight
0.856 kg
Operating Temperature Range
-40 to 120 ºC

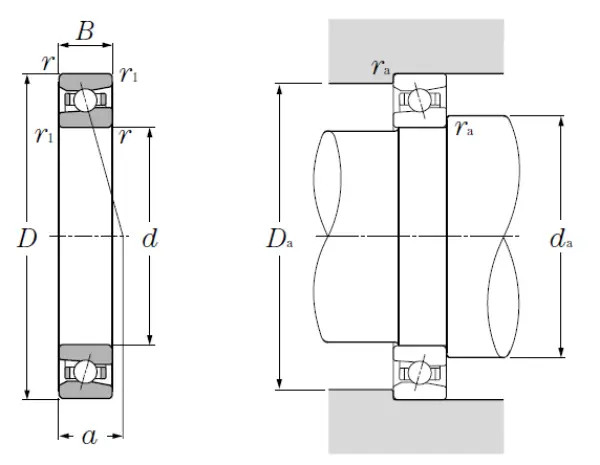

Dimensional Specifications
d
80.000 mm
D
125.000 mm
B
22.000 mm
r
1.100 mm
r1
0.600 mm
Contact Angle
15 º
a
24.500 mm
da min
87.000 mm
Da max
118.000 mm
ras max
1.000 mm
Double Row Width
44.000 mm
Triple Row Width
66.000 mm
Quadruple Row Width
88.000 mm
