NTN HSB018CT1DBT/GLP4
Ultra High-Speed Multi-Row Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Fiber Glass Reinforced
Cage Material
Nylon
Ball Material
Steel
Precision
ISO Class 4
Configuration
Three
Preload
Light
Enclosure
Open
Weight
2.465 kg
Operating Temperature Range
-40 to 120 ºC

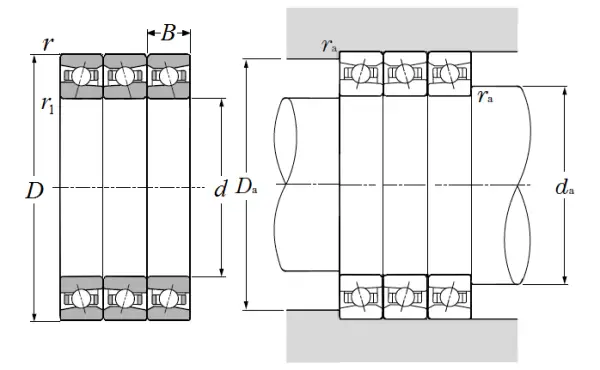

Dimensional Specifications
d
90.000 mm
D
140.000 mm
B
24.000 mm
Total Width
72.000 mm
r
1.500 mm
r1
1.000 mm
Contact Angle
15 º
da min
98.500 mm
Da max
131.500 mm
ras max
1.500 mm
