NTN HSB022CDTBT/GNP4
Ultra High-Speed Multi-Row Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Fiber Glass Reinforced
Cage Material
Nylon
Ball Material
Steel
Precision
ISO Class 4
Configuration
Two
Preload
Normal
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

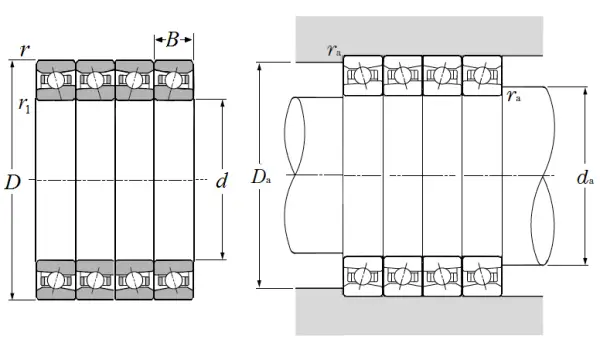

Dimensional Specifications
d
110.000 mm
D
170.000 mm
B
28.000 mm
Total Width
112.000 mm
r
2.000 mm
r1
1.000 mm
Contact Angle
15 º
da min
120.000 mm
Da max
160.000 mm
ras max
2.000 mm
