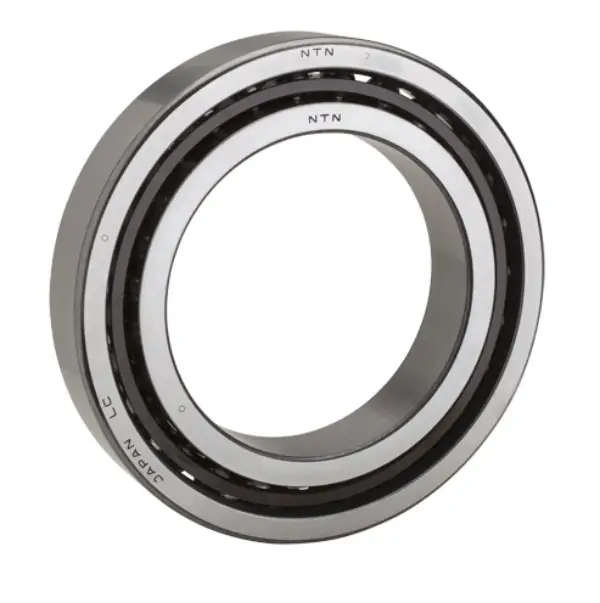

NTN HSB024C
Ultra High-Speed Single Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Fiber Glass Reinforced
Cage Material
Nylon
Ball Material
Steel
Limiting Speed - Oil
7900 RPM
Limiting Speed - Grease
5900 RPM
Configuration
One
Factor
11.0
Static Load Rating
51500 N
Dynamic Load Rating
63000 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

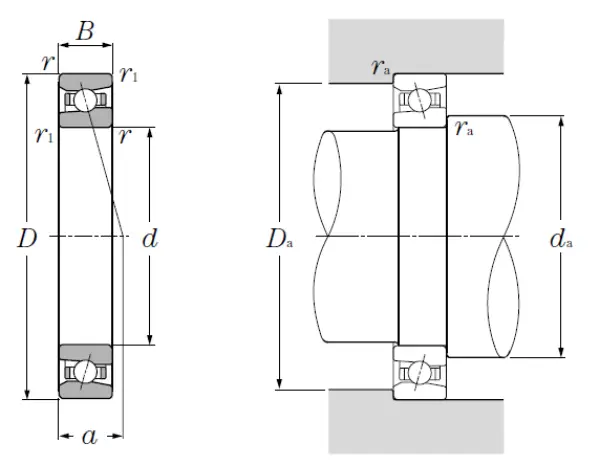

Dimensional Specifications
d
120.000 mm
D
180.000 mm
B
28.000 mm
r
2.000 mm
r1
1.000 mm
Contact Angle
15 º
a
34.000 mm
da min
130.000 mm
Da max
170.000 mm
ras max
2.000 mm
Double Row Width
56.000 mm
Triple Row Width
84.000 mm
Quadruple Row Width
112.000 mm
