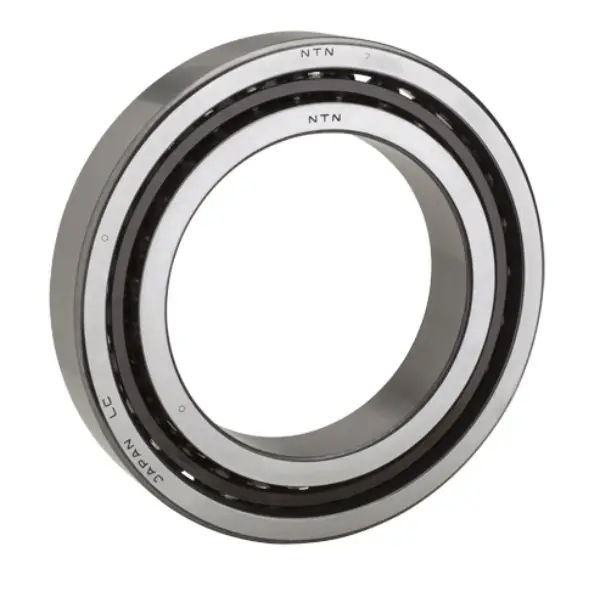

NTN HSB034C
Ultra High-Speed Single Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Machined
Cage Material
Phenolic
Ball Material
Steel
Limiting Speed - Oil
5400 RPM
Limiting Speed - Grease
4100 RPM
Configuration
One
Factor
10.9
Static Load Rating
111000 N
Dynamic Load Rating
129000 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

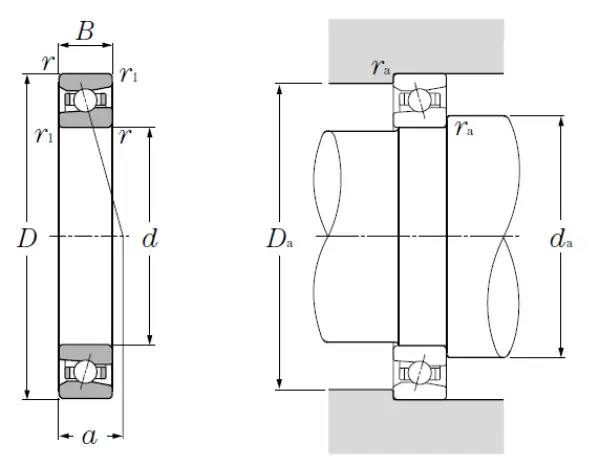

Dimensional Specifications
d
170.000 mm
D
260.000 mm
B
42.000 mm
r
2.100 mm
r1
1.100 mm
Contact Angle
15 º
a
50.000 mm
da min
182.000 mm
Da max
248.000 mm
ras max
2.000 mm
Double Row Width
84.000 mm
Triple Row Width
126.000 mm
Quadruple Row Width
168.000 mm
