NTN HSB910C
Ultra High-Speed Single Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Machined
Cage Material
Phenolic
Ball Material
Steel
Limiting Speed - Oil
20000 RPM
Limiting Speed - Grease
15000 RPM
Configuration
One
Factor
11.1
Static Load Rating
7300 N
Dynamic Load Rating
10600 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

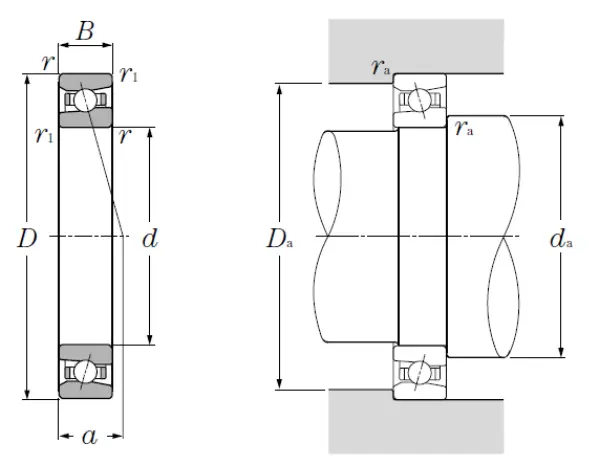

Dimensional Specifications
d
50.000 mm
D
72.000 mm
B
12.000 mm
r
0.600 mm
r1
0.300 mm
Contact Angle
15 º
a
14.000 mm
da min
54.500 mm
Da max
67.500 mm
ras max
0.600 mm
Double Row Width
24.000 mm
Triple Row Width
36.000 mm
Quadruple Row Width
48.000 mm
