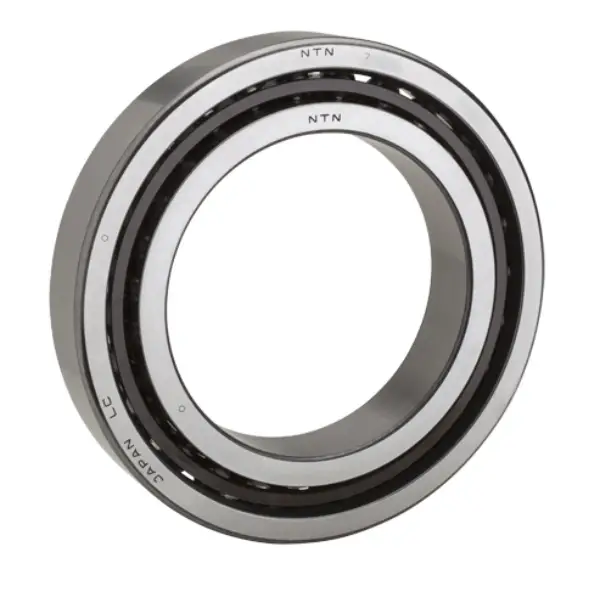

NTN HSB913C
Ultra High-Speed Single Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Machined
Cage Material
Phenolic
Ball Material
Steel
Limiting Speed - Oil
16000 RPM
Limiting Speed - Grease
12000 RPM
Configuration
One
Factor
11.2
Static Load Rating
10700 N
Dynamic Load Rating
14300 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

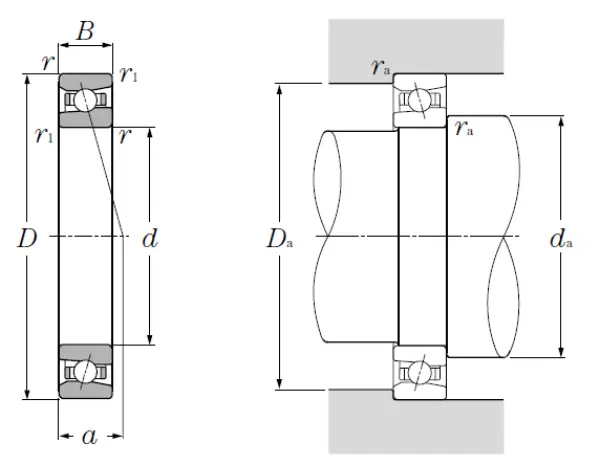

Dimensional Specifications
d
65.000 mm
D
90.000 mm
B
13.000 mm
r
1.000 mm
r1
0.600 mm
Contact Angle
15 º
a
17.000 mm
da min
70.500 mm
Da max
84.500 mm
ras max
1.000 mm
Double Row Width
26.000 mm
Triple Row Width
39.000 mm
Quadruple Row Width
52.000 mm
