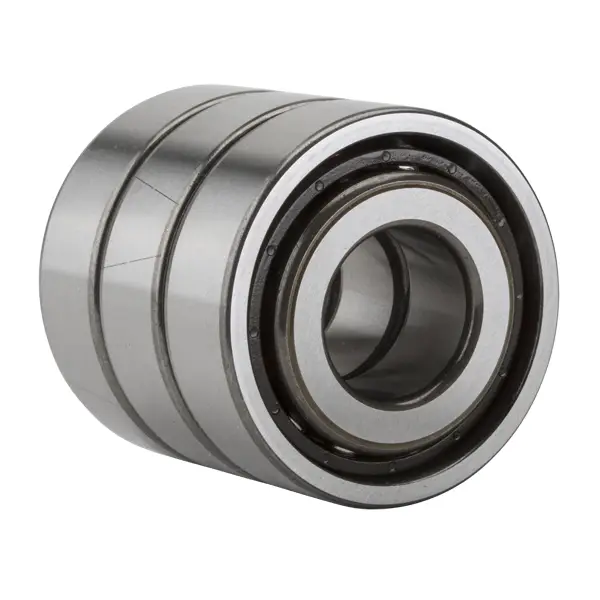

NTN HTA920UADBT/GNP5L
Duplex Angular Contact Ball Bearings for Axial Loads - HTA Type
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Main Spindle Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Machined
Cage Material
Phenolic
Ball Material
Steel
Limiting Speed - Oil
7600 RPM
Limiting Speed - Grease
6100 RPM
Precision
ISO Class 5
Configuration
Two
Preload
Normal
Enclosure
Open
Weight
2.430 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
100.000 mm
D
140.000 mm
B
27.000 mm
2B
81.000 mm
d1
115.300 mm
D2
129.000 mm
r
1.100 mm
r1
0.600 mm
Contact Angle
30 º
2a
87.600 mm
