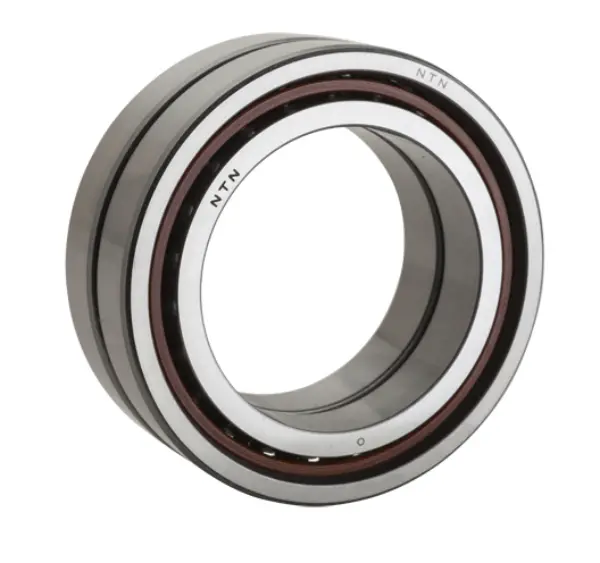

NTN HTA922ADB
Duplex Angular Contact Ball Bearings for Axial Loads - HTA Type
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Main Spindle Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Machined
Cage Material
Phenolic
Ball Material
Steel
Limiting Speed - Oil
9600 RPM
Limiting Speed - Grease
7700 RPM
Configuration
Two
Static Load Rating
118000 N
Dynamic Load Rating
41500 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
110.000 mm
D
150.000 mm
B
18.000 mm
2B
36.000 mm
d1
125.300 mm
D2
139.000 mm
r
1.100 mm
r1
0.600 mm
Contact Angle
30 º
2a
93.400 mm
da min
120.000 mm
Db max
144.000 mm
ras max
1.000 mm
r1as max
0.600 mm
