NTN K35X42X45ZW
Needle Roller and Cage Assemblies
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Needle and Cage
Material
High Carbon Chrome Steel
Cage Material
Steel
Limiting Speed - Oil
11000 RPM
Limiting Speed - Grease
7500 RPM
Enclosure
Open
Precision
ISO Class 0
Static Load Rating
74000 N
Dynamic Load Rating
42500 N
Weight
0.106 kg

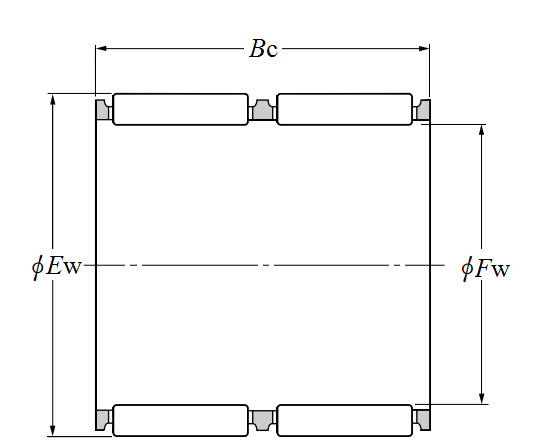

Dimensional Specifications
Fw
35.000 mm
Ew
42.000 mm
Bc
45.000 mm
Bc Tolerance
-0.2/-0.55
