NTN K68X74X35ZW
Needle Roller and Cage Assemblies
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Needle and Cage
Material
High Carbon Chrome Steel
Cage Material
Steel
Limiting Speed - Oil
6000 RPM
Limiting Speed - Grease
4000 RPM
Enclosure
Open
Precision
ISO Class 0
Static Load Rating
125000 N
Dynamic Load Rating
49500 N
Weight
0.116 kg

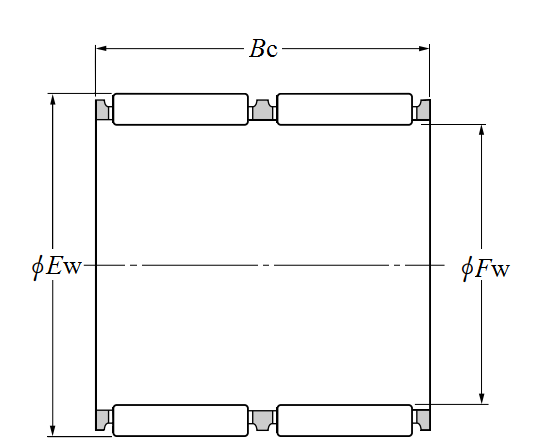

Dimensional Specifications
Fw
68.000 mm
Ew
74.000 mm
Bc
35.000 mm
Bc Tolerance
-0.2/-0.55
