NTN K81104T2
Thrust Roller and Cage Assemblies
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cage and Roller Assembly
Bore Type
Round
Configuration
One
Material
High Carbon Chrome Steel
Cage Material
Nylon
Limiting Speed - Oil
8500 RPM
Limiting Speed - Grease
2100 RPM
Precision
ISO Class 0
Dynamic Load Rating
20200 N
Static Load Rating
46500 N
Operating Temperature Range
-40 to 120 ºC

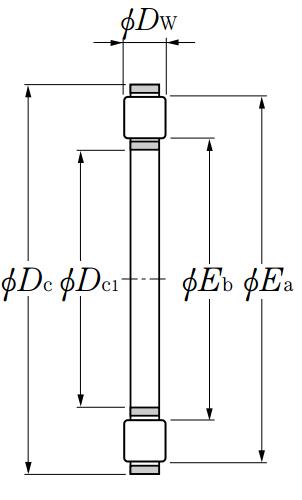

Dimensional Specifications
Dc1
20.000 mm
Dc
35.000 mm
Dw (0/-0.010)
4.500 mm
Ea
32.300 mm
Eb
22.400 mm
