NTN K81107T2
Thrust Roller and Cage Assemblies
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Cage and Roller Assembly
Bore Type
Round
Configuration
One
Material
High Carbon Chrome Steel
Cage Material
Nylon
Limiting Speed - Oil
5500 RPM
Limiting Speed - Grease
1400 RPM
Precision
ISO Class 0
Dynamic Load Rating
31000 N
Static Load Rating
87000 N
Operating Temperature Range
-40 to 120 ºC

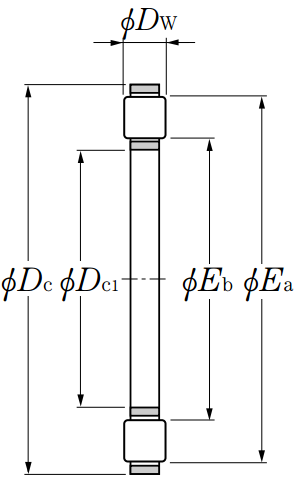

Dimensional Specifications
Dc1
35.000 mm
Dc
52.000 mm
Dw (0/-0.010)
5.000 mm
Ea
48.900 mm
Eb
38.000 mm
