NTN K81210T2
Thrust Roller and Cage Assemblies
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cage and Roller Assembly
Bore Type
Round
Configuration
One
Material
High Carbon Chrome Steel
Cage Material
Nylon
Limiting Speed - Oil
3800 RPM
Limiting Speed - Grease
950 RPM
Precision
ISO Class 0
Dynamic Load Rating
85000 N
Static Load Rating
238000 N
Operating Temperature Range
-40 to 120 ºC

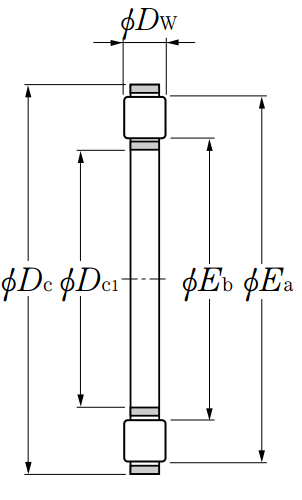

Dimensional Specifications
Dc1
50.000 mm
Dc
78.000 mm
Dw (0/-0.010)
9.000 mm
Ea
73.100 mm
Eb
53.700 mm
