NTN K81224
Thrust Roller and Cage Assemblies
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cage and Roller Assembly
Bore Type
Round
Configuration
One
Material
High Carbon Chrome Steel
Cage Material
Aluminum Alloy
Limiting Speed - Oil
1700 RPM
Limiting Speed - Grease
430 RPM
Precision
ISO Class 0
Dynamic Load Rating
264000 N
Static Load Rating
930000 N
Operating Temperature Range
-40 to 120 ºC

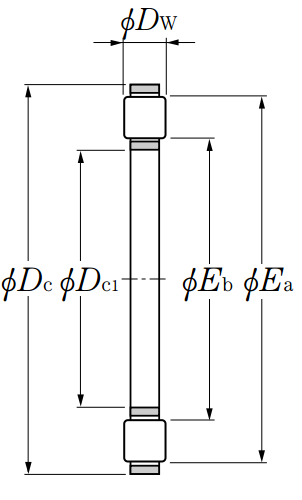

Dimensional Specifications
Dc1
120.000 mm
Dc
170.000 mm
Dw (0/-0.010)
15.000 mm
Ea
160.000 mm
Eb
129.200 mm
