NTN K81228
Thrust Roller and Cage Assemblies
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cage and Roller Assembly
Bore Type
Round
Configuration
One
Material
High Carbon Chrome Steel
Cage Material
Aluminum Alloy
Limiting Speed - Oil
1400 RPM
Limiting Speed - Grease
350 RPM
Precision
ISO Class 0
Dynamic Load Rating
370000 N
Static Load Rating
1280000 N
Operating Temperature Range
-40 to 120 ºC

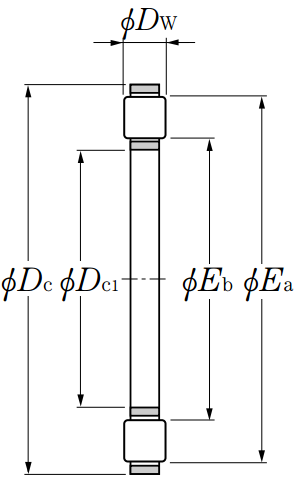

Dimensional Specifications
Dc1
140.000 mm
Dc
200.000 mm
Dw (0/-0.010)
19.000 mm
Ea
189.000 mm
Eb
150.100 mm
