NTN K87409
Thrust Roller and Cage Assemblies
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cage and Roller Assembly
Bore Type
Round
Configuration
One
Material
High Carbon Chrome Steel
Cage Material
Aluminum Alloy
Limiting Speed - Oil
3200 RPM
Limiting Speed - Grease
800 RPM
Precision
ISO Class 0
Dynamic Load Rating
128000 N
Static Load Rating
510000 N
Operating Temperature Range
-40 to 120 ºC

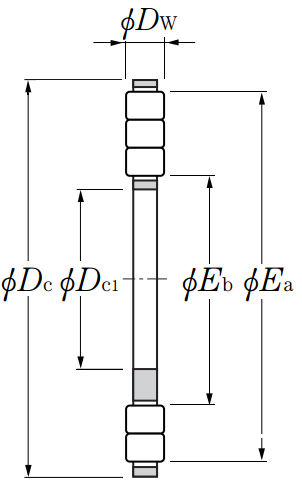

Dimensional Specifications
Dc1
45.000 mm
Dc
100.000 mm
Dw (0/-0.010)
7.000 mm
Ea
96.000 mm
Eb
53.000 mm
